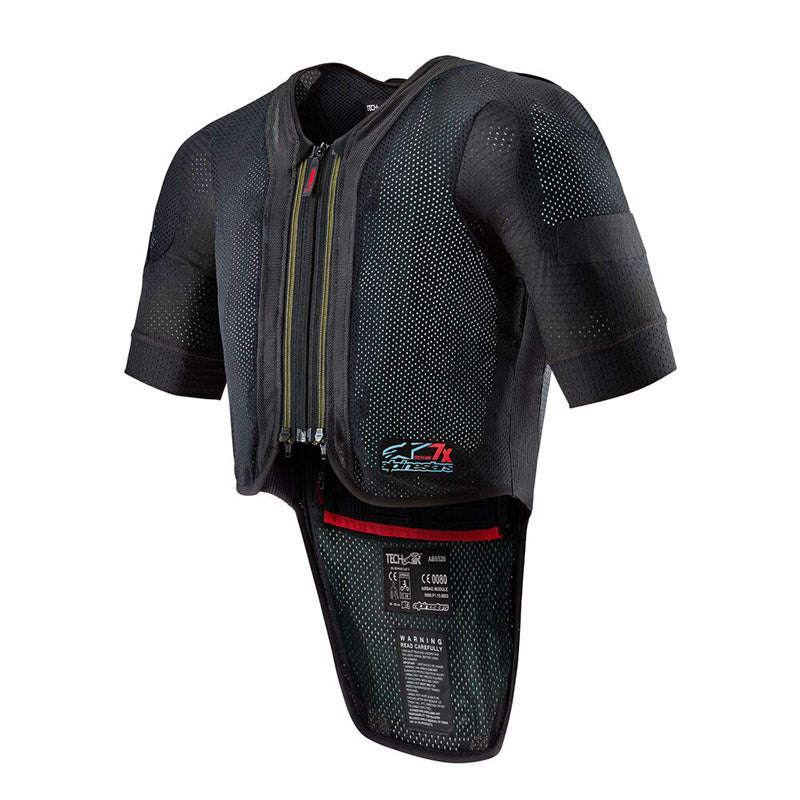

Specifically developed for road racing, track day use and performance road riding, the FIM-homologated, Tech-Air® 7x is derived from Alpinestars’ proven MotoGP Airbag technology. The fully autonomous, self-contained motorcycling Airbag System is engineered for racing, offering riders streamlined, low profile, and highly ventilated Tech-Air® protection. Developed for performance/recreational motorcycling, the Tech-Air® 7x provides riders with comprehensive upper body protection by covering their shoulders, chest, and full back. The integrated back protector is extended in length for additional protection of the coccyx. The Tech-Air® 7x can be used as a Standalone System or as an Integrated System within a compatible suit or jacket. The System is designed to function for racing on closed-circuit tracks, as well as for road riding, and light off-road riding.
The state-of-the-art, wearable Tech-Air® 7x Airbag System comes with an active electronic system that features twelve integrated sensors: 3 triaxial accelerometers (1 positioned on the back protector and 2 positioned on the shoulders) and 1 triaxial gyroscope (located within the back protector). These sensors monitor the rider’s body for shocks or unexpected movements. Developed through years of research in collaboration with over 50% of the world’s leading MotoGP riders and Alpinestars’ customers riding with Tech-Air® Systems, our team has analyzed riding data from millions of kilometers and thousands of crashes to continuously enhance the System’s intelligent crash detection algorithms. Upon the identification of a crash situation, which happens when the rider’s body is subjected to a high and/or sudden amount of energy, the algorithm will trigger the deployment of the protective Airbag, providing unrivaled protection to the rider or the passenger wearing the System (with a maximum inflation time of 44ms, depending on the volume of the Airbag size). The impact absorption while wearing the Airbag when inflated, results in a decrease of the impact force by up to 90% compared to a passive CE Level 1 protector.
TECH-AIR® 7X RIDING MODES: RACE AND STREET
The Tech-Air® 7x System comes pre-loaded with two different Riding Modes: RACE Mode for riding on closed-circuit racetracks and STREET Mode for street and light off-road riding. Users can easily switch between Race and Street Riding Modes by simply using the Tech-Air® App. The System must always be used in Street Mode when driving on public roads and NOT on a closed-circuit racetrack. Riders should always remember to switch from Race Mode to Street Mode when they’ve finished at the circuit and leave the track, to ensure that they have full protection, even when stopped at traffic lights, intersections, or for any reason. Airbag protection when stopped is only provided by the Street Mode algorithm.
The Tech-Air® 7x is compatible with all FIM Grand Prix Requirements for Airbag Systems, making it suitable for road racing competitions.
The Tech-Air® 7x features the latest evolution of Alpinestars Tech-Air® technology, including a more compact and complete active electronic System that is equipped with 12 sensors.
There are 4 tri-axial sensors: 1 tri-axial accelerometer and 1 tri-axial gyroscope located on the main electronic control unit, and 2 additional tri-axial accelerometers located on the shoulders, specifically developed for track and performance riding, and these combine with the Tech-Air® algorithm to accurately monitor when to deploy the Airbag in the event of a crash. Upon the detection of a crash situation, a protective Airbag is deployed, providing unrivaled protection to the rider with a maximum inflation time of 44ms depending on the Airbag size.
The Airbag has been fully certified for up to 4 Airbag deployments before having to replace it, providing the Airbag hasn’t been damaged in one of the first 3 deployments.
This Airbag System is certified as a Category II PPE (Personal Protective Equipment) under European Regulation (EU) 2016/425.
Certifications of the Airbag System covered by Dolomiticert’s guidelines for inflatable protectors with electronic activation:
Airbag System Central Back inflatable protector, Level 2, EN 1621-4:2018
STREET and RACE Algorithms performance
Additional Tech-Air® 7x Certifications:
Protective garment, Class C, EN 17092-6:2020
Integrated Passive Central Back, Level 1, EN 1621-2:2014
Tech-Air® 7x is certified as an undergarment, to be used in combination with and under a protective garment.

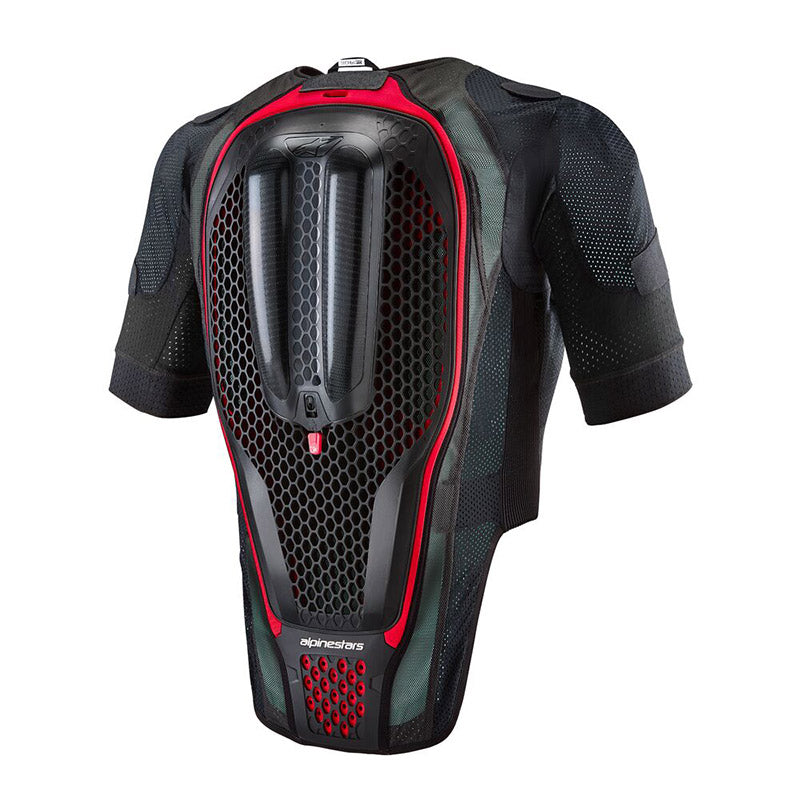

The integrated back protector is extended for protection of the coccyx.
